Z BOX-C PLUS C 261-2H / 261kWh

The price may change due to currency fluctuations and changes in market conditions.

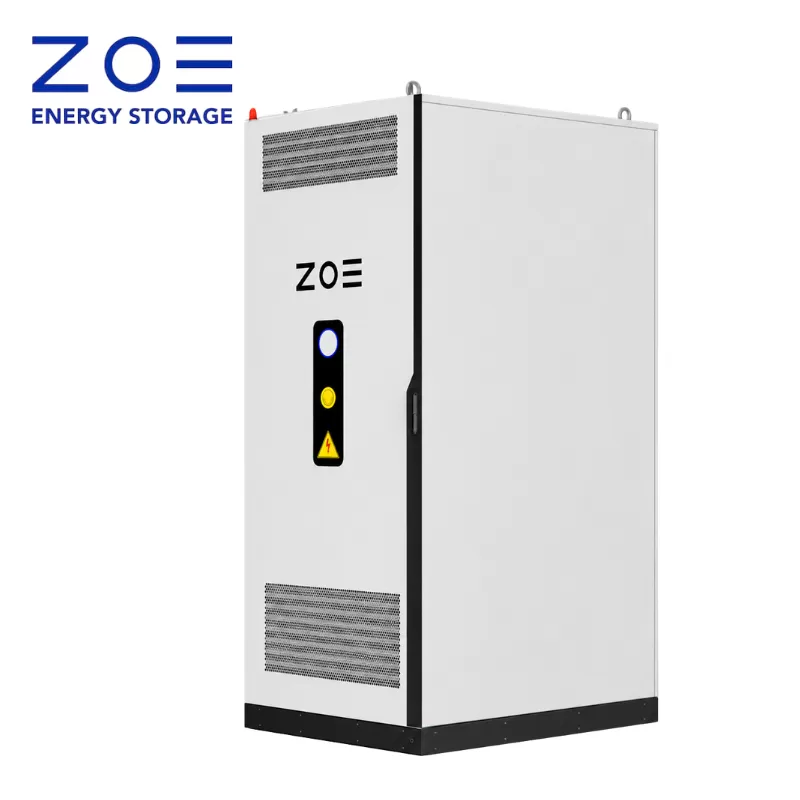

Z BOX-C PLUS C 261-2H is a liquid-cooled energy storage device with a capacity of 261 kWh and a power of 125 kW. It stores energy from a solar power plant or the electrical grid and allows it to be used when it is needed most.

The equipment is designed to operate in a wide temperature range (from -30 °C to +55 °C), and the battery cabinet protection meets the IP55 class. Remote monitoring is carried out via a local area network (LAN) or wireless connection. The safety and reliability of the device are confirmed by international certificates.

Size: 990*2300*1320 mm
Weight: 2560 kg
Battery Type: LFP
Recommended to connect: Outdoor
Cooling method: liquid cooling/heating

Description

ZOE TOP 10 Advantages
1. Liquid cooling with a temperature difference of ±2 °C
2. Operation from –30 °C to +55 °C without derating up to +55 °C
3. C4/C5 corrosion protection
4. IP55 protection
5. Water-based fire suppression system and ventilation
6. Multi-layer thermal runaway prevention
7. 3-level BMS: cell, rack and cabinet
8. Resistant to ammonia, fertilisers and chemicals
9. Low degradation over 10 years: 25–30%
10. Stable RTE of 89–92% even at high temperatures

The Z BOX-C PLUS C 261-2H storage system is designed to help businesses manage their electricity costs efficiently and increase their energy independence. The device stores electricity when it is cheaper (e.g. at night or when it is produced by a solar power plant) and delivers it when there is a higher energy demand at the facility. These storage system capabilities help businesses reduce peak power, stabilize costs and keep critical equipment up and running even during brief power outages. A seamless all-in-one The all-in-one enclosure ensures that there is no need to install many individual components – installation is faster and operation is simpler.

The Z BOX-C PLUS C 261-2H has a capacity of 261 kWh, making it ideal for logistics warehouses, production workshops, office buildings or electric vehicle charging stations. The 125 kW power allows flexible response to load spikes and efficient balancing of electrical flows.

The liquid-cooled design ensures stable operation under heavy loads over a wide range of ambient temperatures, both cold and hot. The liquid allows you to maintain a uniform temperature throughout the battery pack, thus extending the life of the battery, increasing safety. The pumps work much quieter than large industrial fans, so the noise level (up to 70 dB) does not disturb the working environment.

The protection class of the battery cabinet IP55 guarantees resistance to dust and moisture. The dimensions of the device are about 990 × 2300 × 1320 mm, weight - about 2.56 tons.

Management and diagnostics take place over a local area network (LAN) or wirelessly, and data is available in real time. The advanced safety system includes early detection of overheating, audible and visual warnings, a pressure relief system and an aerosol or water extinguishing system. The safety and reliability of the device is confirmed by international certificates.

This energy storage system for business complies with international standards (IEC/EN 62619, IEC 62933, UN38.3), so it can be installed worldwide. In Lithuania, companies can take advantage of financing measures from the Lithuanian Energy Agency, and you can find more solutions in our category Energy storage for business.
